Configuring Custom CSS Styling in the Portal

The Custom CSS capability in the Fenergo Portal empowers configurators with the ability to apply tailored styling directly into the portal UI, without requiring code deployment or backend changes. This feature enables highly flexible branding and accessibility enhancements across both Standard Mode and High Contrast Mode.

Custom CSS gives teams the power to:

• Apply organistion-specific visual themes quickly and consistently
• Enhance accessibility with targeted styles for high contrast scenarios
• Make rapid non-disruptive visual updates in response to client feedback
• Override the default appearance of key components in a safe and controlled way

All custom styles are scoped to supported components and validated prior to application, ensuring consistency across the platform without compromising layout or responsiveness.

Accessing the Custom CSS Fields

Two text area fields are available within the Portal Administration UI for entering custom CSS:

Mode	Field Name	Location in UI
Standard Mode	Standard Mode CSS	Portal Configuration Area > Appearance Config
High Contrast Mode	High Contrast Mode CSS	Portal Configuration Area > Appearance Config

These fields accept raw CSS input, which is applied immediately after saving. Each field applies styling to its corresponding mode only.

Validation Rules

To preserve portal layout integrity and user experience, the following rules are enforced:

• Only supported CSS class selectors (listed below) may be used.
• The following CSS properties are blocked:
  • width, min-width, max-width
  • height, min-height, max-height

If unsupported class names or blocked properties are used, the following error appears:

"Invalid CSS. The configurator will need to remove this before the CSS can be saved."

Only the following pseudo-classes are allowed in custom CSS:

• :hover
• :active
• :focus
• :enabled
• :disabled
• :checked

Supported CSS Classes

Custom CSS can target only the predefined, supported class names listed below. Each class must be prefixed with .custom-css_ when referenced in the CSS input. There are 67 supported classes across 16 feature areas.

Common

Friendly Name	Custom CSS Class Name
New Journey Wrapper	.custom-css_new-journey-box
Background Image Holder	.custom-css_background-image-holder
App Bar	.custom-css_app-bar
Data Group Add Item Button	.custom-css_data-group-add-item-button
Dashboard Link	.custom-css_dashboard-link
Journey Progress Bar – Text	.custom-css_journey-progress-bar-text
Journey Progress Bar – Background	.custom-css_journey-progress-bar-background
Journey Progress Bar – Completion	.custom-css_journey-progress-bar-completion

Footer

Friendly Name	Custom CSS Class Name
Text	.custom-css_footer-text

Login Screen

Friendly Name	Custom CSS Class Name
Main Heading	.custom-css_login-screen-main-heading
Subtext	.custom-css_login-screen-subtext

Dashboards

Friendly Name	Custom CSS Class Name
Default Dashboard Page Container	.custom-css_default-dashboard-page-container
Sidebar Menu (Drawer)	.custom-css_sidebar-menu
Table Dashboard Page Container	.custom-css_table-dashboard-page-container
Funds Dashboard Container	.custom-css_funds-dashboard-container
Fund Details Container	.custom-css_fund-details-container

Entity Details

Friendly Name	Custom CSS Class Name
Data Box	.custom-css_entity-profile-details-v1
Entity Details Card	.custom-css_entity-profile-container-v1

Entity Hub

Friendly Name	Custom CSS Class Name
Menu Container	.custom-css_entity-profile-menu-container
Content Container	.custom-css_entity-profile-content-container
Entity Details Container	.custom-css_entity-profile-details-container
Data Group Record Accordion	.custom-css_entity-profile-data-group-record-accordion
Data Group Record Accordion (Expanded)	.custom-css_entity-profile-data-group-record-accordion-expanded
Data Group Record Accordion Summary	.custom-css_entity-profile-data-group-record-summary
Data Group Record Accordion Summary (Expanded)	.custom-css_entity-profile-data-group-record-summary-expanded
Data Group Record Accordion Summary Title	.custom-css_entity-profile-data-group-record-summary-title
Data Group Record Accordion Details	.custom-css_entity-profile-data-group-record-accordion-details

Journey

Friendly Name	Custom CSS Class Name
Sticky Header	.custom-css_journey-sticky-header
Header Extended Background	.custom-css_journey-header-extended-background
GPI Container	.custom-css_gpi-container
GPI Journey Info	.custom-css_gpi-journey-info
GPI Journey Name	.custom-css_gpi-journey-name
GPI Process Container	.custom-css_gpi-process-container
GPI Process Name	.custom-css_gpi-process-name
GPI Task Item Container	.custom-css_gpi-task-item-container
GPI Task Button	.custom-css_gpi-task-button
GPI Task Name	.custom-css_gpi-task-name
Task Container	.custom-css_task-container

Task Details

Friendly Name	Custom CSS Class Name
Task Header	.custom-css_task-details-header

Product Task

Friendly Name	Custom CSS Class Name
Tabs Container	.custom-css_product-task-tabs-container
Tab	.custom-css_product-task-tab

Documents

Friendly Name	Custom CSS Class Name
Document Requirement Row (v1)	.custom-css_documentV1-requirement-row
Document Requirement Row (v2)	.custom-css_documentV2-requirement-row
Linked Documents Container (v2)	.custom-css_documentV2-requirement-row-linked-docs-container

E-Signature

Friendly Name	Custom CSS Class Name
Documents to Sign Container	.custom-css_esignature-documents-to-sign-container
Read & Understand Checkbox Container	.custom-css_esignature-read-and-understand-checkbox-container
Single Requirement Panel	.custom-css_esignature-single-requirement-panel
Requirement Signers Section	.custom-css_esignature-requirement-signers-section
Requirement Documents Section	.custom-css_esignature-requirement-documents-section
Requirement Accordion	.custom-css_esignature-requirement-accordion
Requirement Accordion (Expanded)	.custom-css_esignature-requirement-accordion-expanded
Requirement Accordion Summary	.custom-css_esignature-requirement-accordion-summary
Requirement Accordion Summary (Expanded)	.custom-css_esignature-requirement-accordion-summary-expanded
Requirement Accordion Summary Title	.custom-css_esignature-requirement-accordion-summary-title
Requirement Accordion Details	.custom-css_esignature-requirement-accordion-details

Tooltip

Friendly Name	Custom CSS Class Name
Header Background	.custom-css_tooltip-header-background
Container	.custom-css_tooltip-container
Icon	.custom-css_tooltip-icon

Markdown

Friendly Name	Custom CSS Class Name
Chip	.custom-css_markdown-chips

Checkbox List

Friendly Name	Custom CSS Class Name
Container	.custom-css_checkbox-list-container
Checkbox Item	.custom-css_checkbox-list-checkbox
Checkbox Item Label	.custom-css_checkbox-item-label

Radio List

Friendly Name	Custom CSS Class Name
Container	.custom-css_radio-list-container
Radio Item	.custom-css_radio-list-radio-item
Radio Item Label	.custom-css_radio-item-label

Form

Friendly Name	Custom CSS Class Name
Input	.custom-css_form-input
Text Area	.custom-css_form-text-area
Label	.custom-css_form-label
Field Group Category Title	.custom-css_form-field-group-category-title

Button

Friendly Name	Custom CSS Class Name
Primary	.custom-css_button-primary
Secondary	.custom-css_button-secondary

Images of areas within the Portal:

New Journey Wrapper

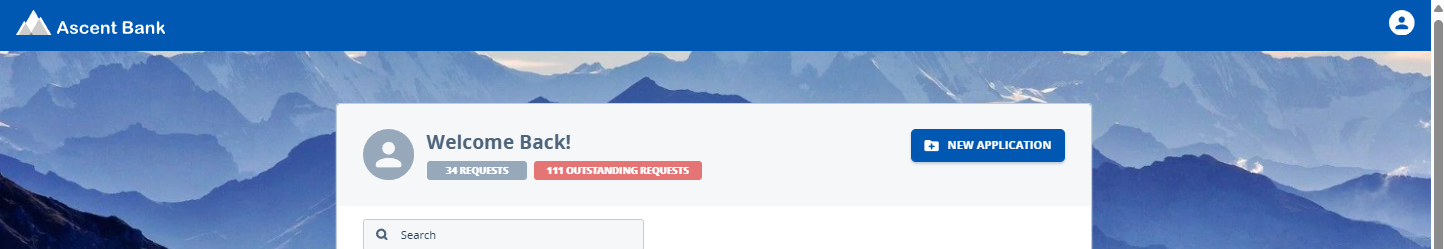

Background Image Holder

App Bar

Add Data Group Button

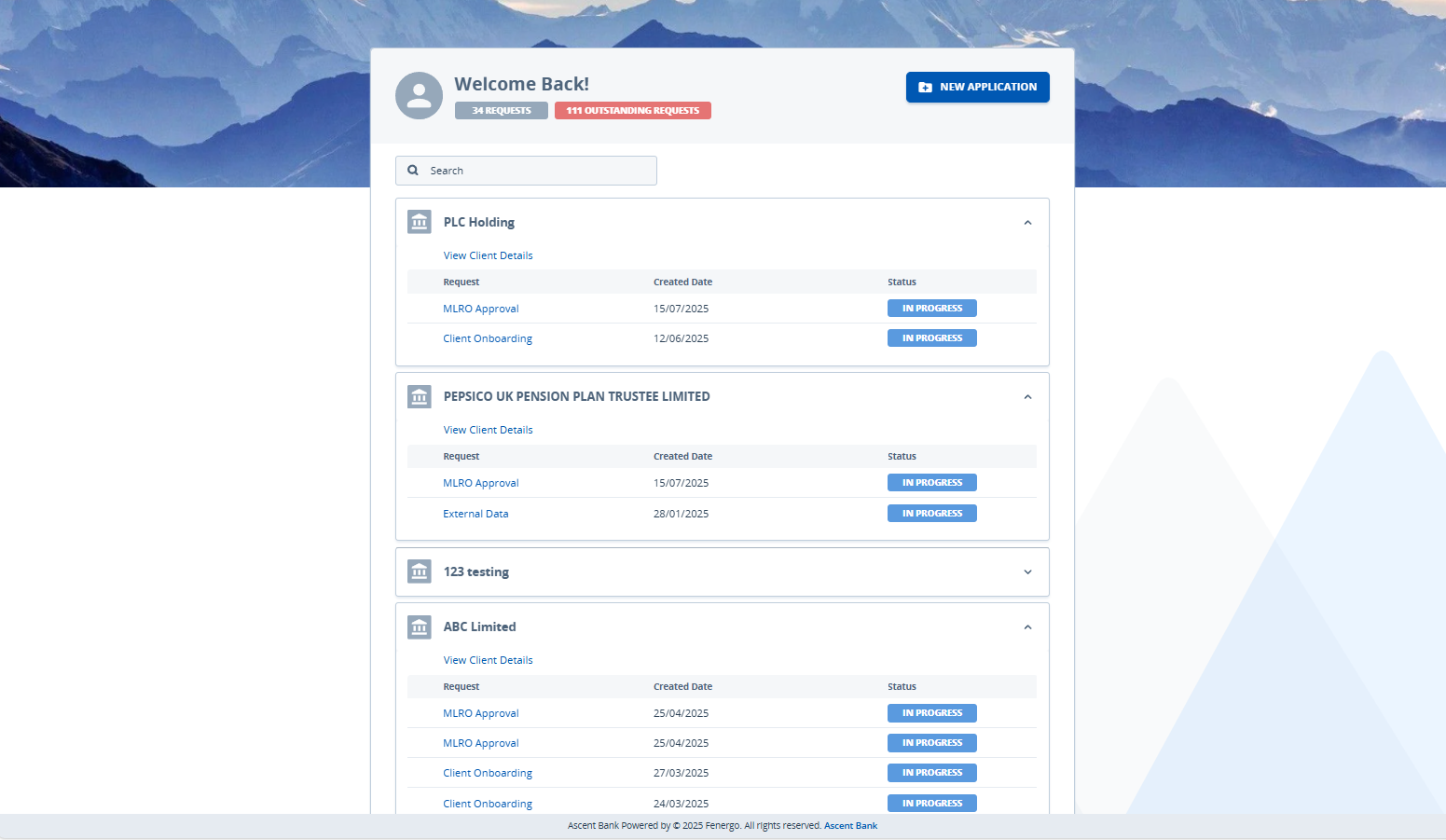

Default Dashboard Page Container

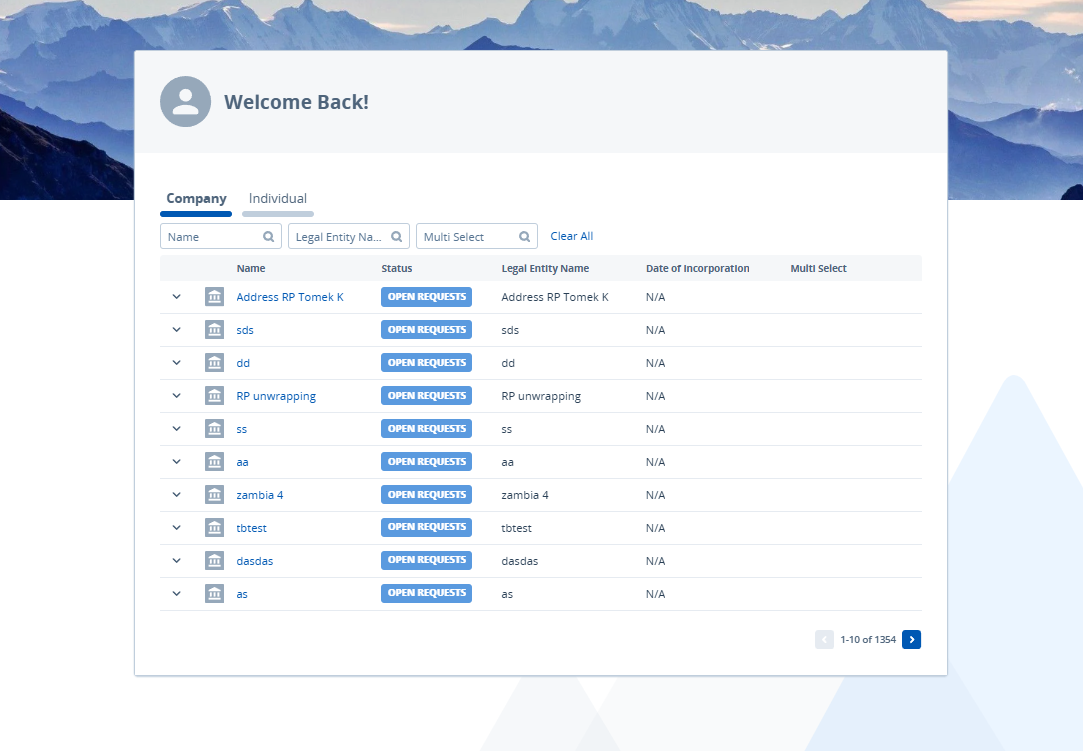

Table Dashboard Page Container

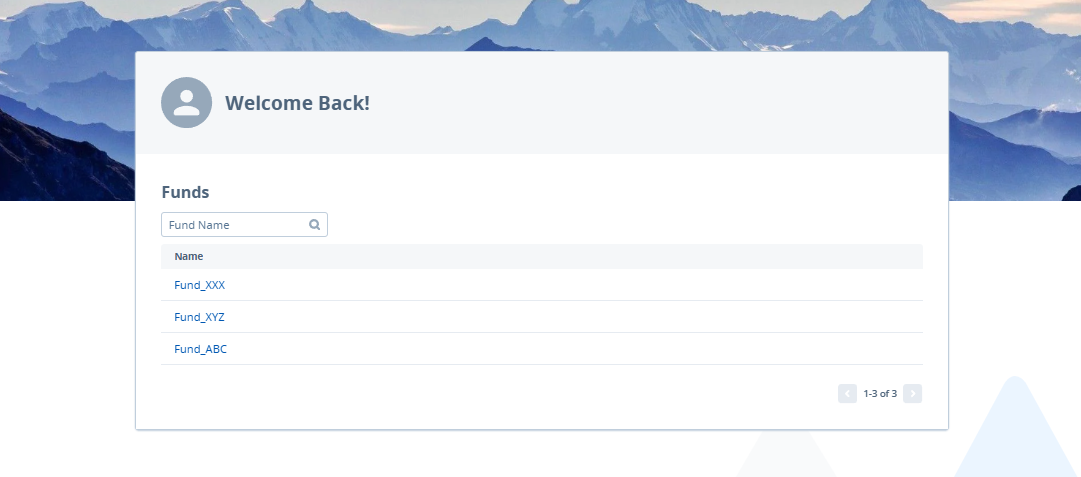

Funds Dashboard Container

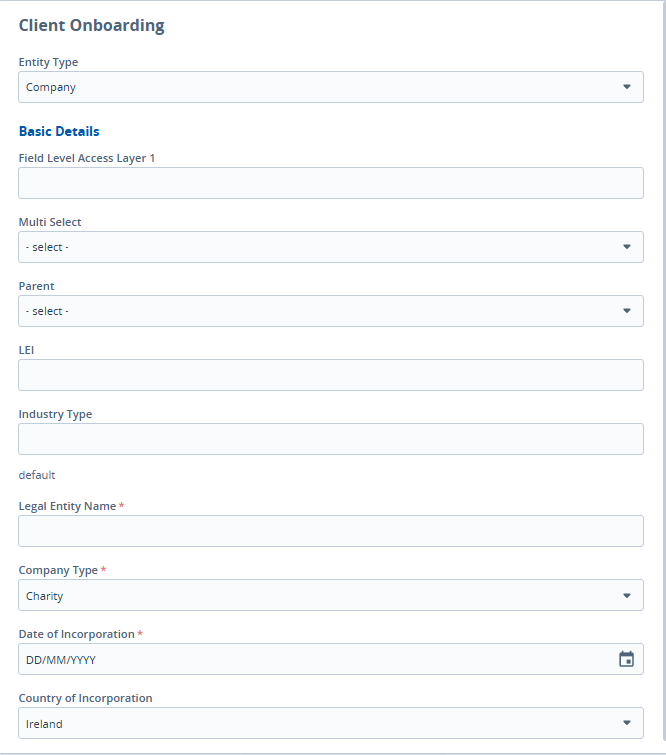

Fund Details Container

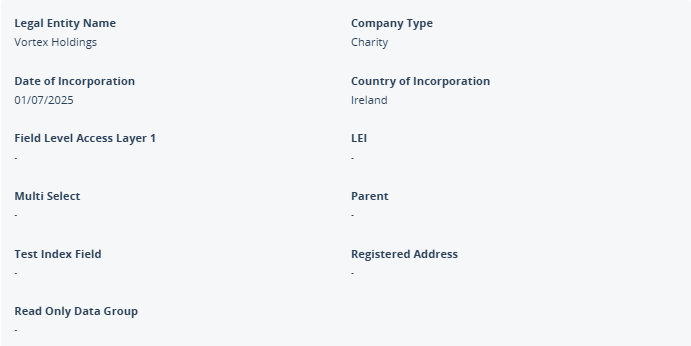

Entity Profile Details Box / Entity Profile Details Container

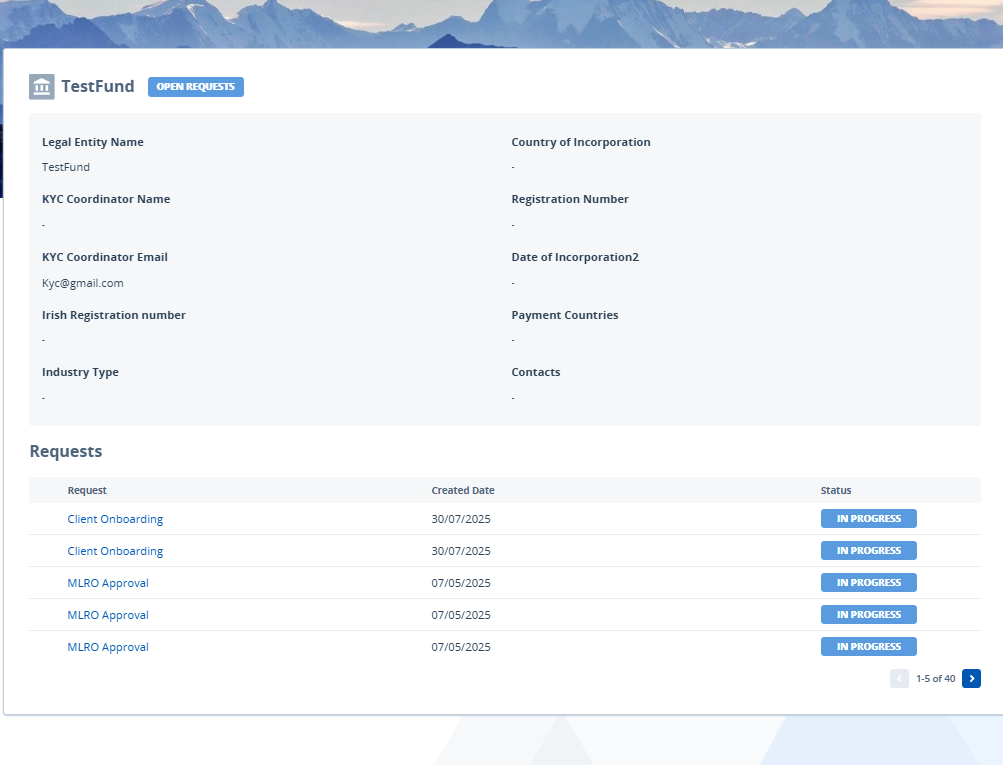

Entity Details Card

Entity Profile Menu Container

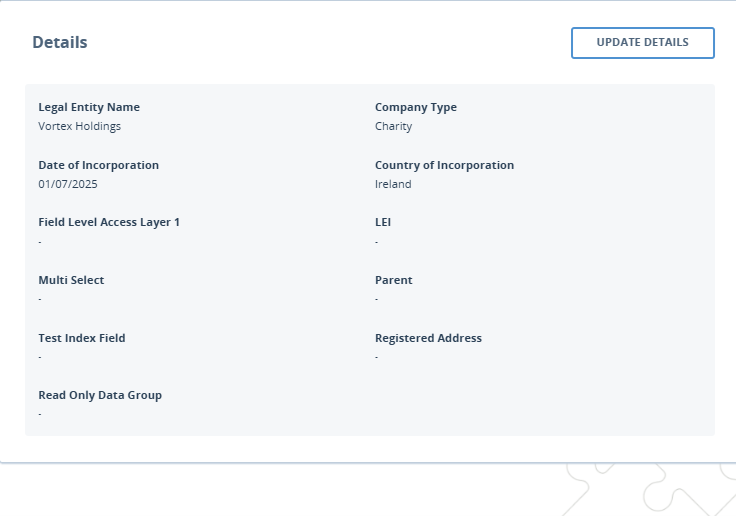

Entity Profile Content Container

Journey Sticky Header

Journey Header Extended Background

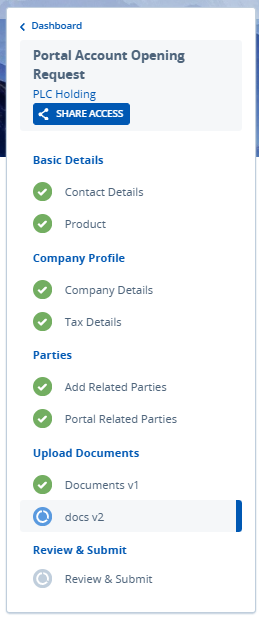

GPI Container

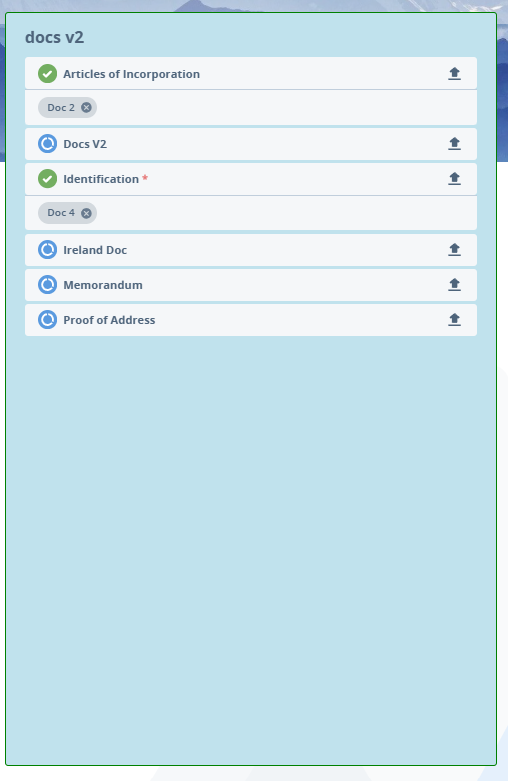

Task Container

Document Requirements Row V1

Document Requirements Row V2

Linked Documents Container V2

Finding Targetable Elements Using Browser Developer Tools

Not all elements in the Portal are targetable via Custom CSS — only elements that carry a .custom-css_ class can be styled. Browser developer tools can be used to determine whether a given element is eligible for customisation before writing any CSS rules.

Inspecting a Specific Element

To check whether a particular element can be targeted:

1. Navigate to the Portal and locate the element to be styled.
2. Right-click the element and select Inspect (or Inspect Element) from the context menu. The browser's Developer Tools panel opens with that element highlighted in the HTML tree.
3. Look at the class attribute of the highlighted element or any of its parent elements. If a class beginning with custom-css_ is present, the element is targetable.

For example, an element with class="custom-css_app-bar" can be styled using .custom-css_app-bar { ... } in the Custom CSS field.

Searching the Page Source for Custom CSS Classes

To get an overview of all targetable elements currently rendered on a page:

1. Open Developer Tools (right-click anywhere on the page and select Inspect, or press F12).
2. In the Elements panel, press Ctrl+F (Windows) or Cmd+F (Mac) to open the search bar within the HTML tree.
3. Type custom-css_ to highlight all matching elements in the DOM.

Any element returned by this search can be targeted in the Custom CSS configuration fields.

info

If an element does not have a custom-css_ class, it cannot be styled using the Custom CSS feature, regardless of other class names present on the element.

Fonts

The Fonts section enables Portal configurators to upload and manage a custom font family to be used across the Portal UI. This allows each tenant to align the Portal experience with their organisation’s branding and visual identity. Uploaded fonts are applied globally to all headings, body text, form fields, buttons, tables, modals, and notifications within the Portal.

A fallback font stack (beginning with Open Sans) is automatically applied if a custom font cannot be loaded, ensuring the UI remains accessible and readable.

Uploading Fonts

From Portal Configuration > Appearance, scroll to the Fonts section (located after the Custom CSS section).

• Click Add to begin uploading a font file.
• Supported file types: .woff, .woff2, .ttf, .otf.
• For each file, you must specify:
  • Font Style: Normal or Italic
  • Font Weight: Choose from 100–900, or define a range (e.g., 100–900)

Multiple files can be uploaded to support different styles and weights within the same font family (e.g., bold italic, light normal). This ensures text is rendered consistently throughout the Portal.

Managing Fonts

• Add Button: Add more font files to the same family until the upload limit is reached.
• Delete Icon: Remove unwanted fonts. When a font in use is deleted, the Portal reverts to the fallback font.

Behaviour Notes

• If no fonts are uploaded, the Portal continues to use the default font stack.
• Once uploaded, the custom font is applied globally wherever matching font-style and font-weight combinations are used in the UI.

Auth0 login page

To ensure the correct font is used, a font file with the Font Style: Normal and Font Weight: 400 must be configured. If this is not configured, the Auth0 login page will automatically use the portal default font.
